868MHz Fiberglass Antenna Outdoor OMNI Antenna 868 MHz Helium Bobcat Miner Hotspot Antennas for Meshtastic Lorawan Long Range N
868MHz Fiberglass Antenna Outdoor OMNI Antenna 868 MHz Helium Bobcat Miner Hotspot Antennas for Meshtastic Lorawan Long Range N - Image 2
868MHz Fiberglass Antenna Outdoor OMNI Antenna 868 MHz Helium Bobcat Miner Hotspot Antennas for Meshtastic Lorawan Long Range N - Image 3
868MHz Fiberglass Antenna Outdoor OMNI Antenna 868 MHz Helium Bobcat Miner Hotspot Antennas for Meshtastic Lorawan Long Range N - Image 4
868MHz Fiberglass Antenna Outdoor OMNI Antenna 868 MHz Helium Bobcat Miner Hotspot Antennas for Meshtastic Lorawan Long Range N - Image 5
868MHz Fiberglass Antenna Outdoor OMNI Antenna 868 MHz Helium Bobcat Miner Hotspot Antennas for Meshtastic Lorawan Long Range N - Image 6

868MHz Fiberglass Antenna Outdoor OMNI Antenna 868 MHz Helium Bobcat Miner Hotspot Antennas for Meshtastic Lorawan Long Range N

(7 customer reviews)

$33.99 $143.99Price range: $33.99 through $143.99

Fast FREE Shipping On All Orders!

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • Visa Card
  • Apple Pay
  • Visa Card

The link price is 1PCS，Three colors can be selected, the default delivery is black, if you need other colors,
please contact customer service or order remarks.

Material: Fiberglass
Material of Radiator: Copper
Connector Type: N-male
Colour：Black/Gray/White
Antenna Height and Gain: 35CM（5.8dBi）/45CM（7dbi）/55CM(8dbi)/80CM(10dbi)/100CM(12dbi)/115CM(14dbi)

Antenna Diameter:2cm

Frequency: 868MHz
Radiation type: Omnidirectional
Polarization: Vertical
Nominal Impedance: 50 Ohm
Max Input Power: 50W

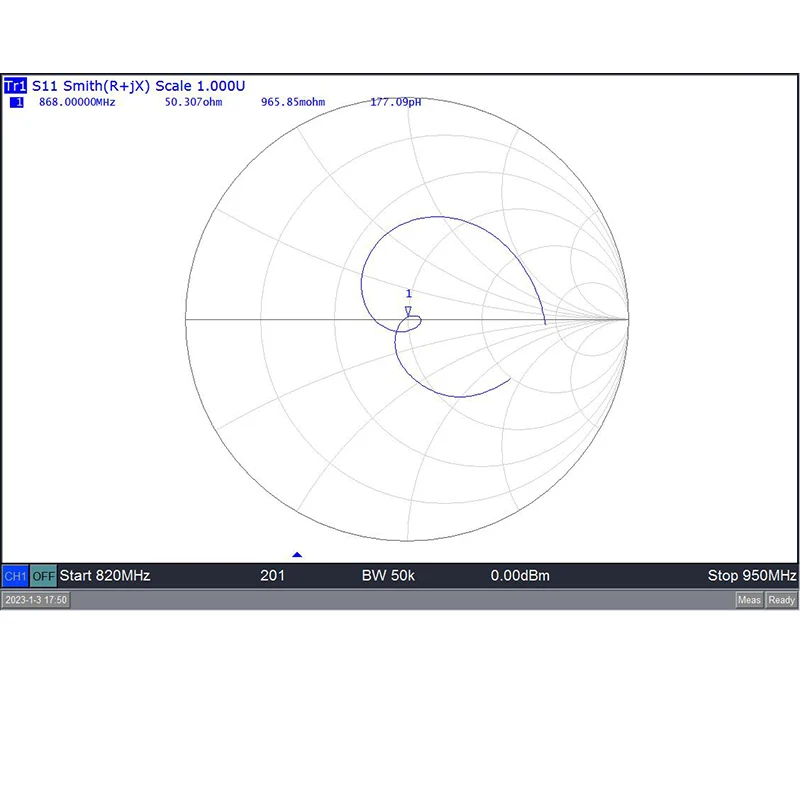

S.W.R.: ≤1.5

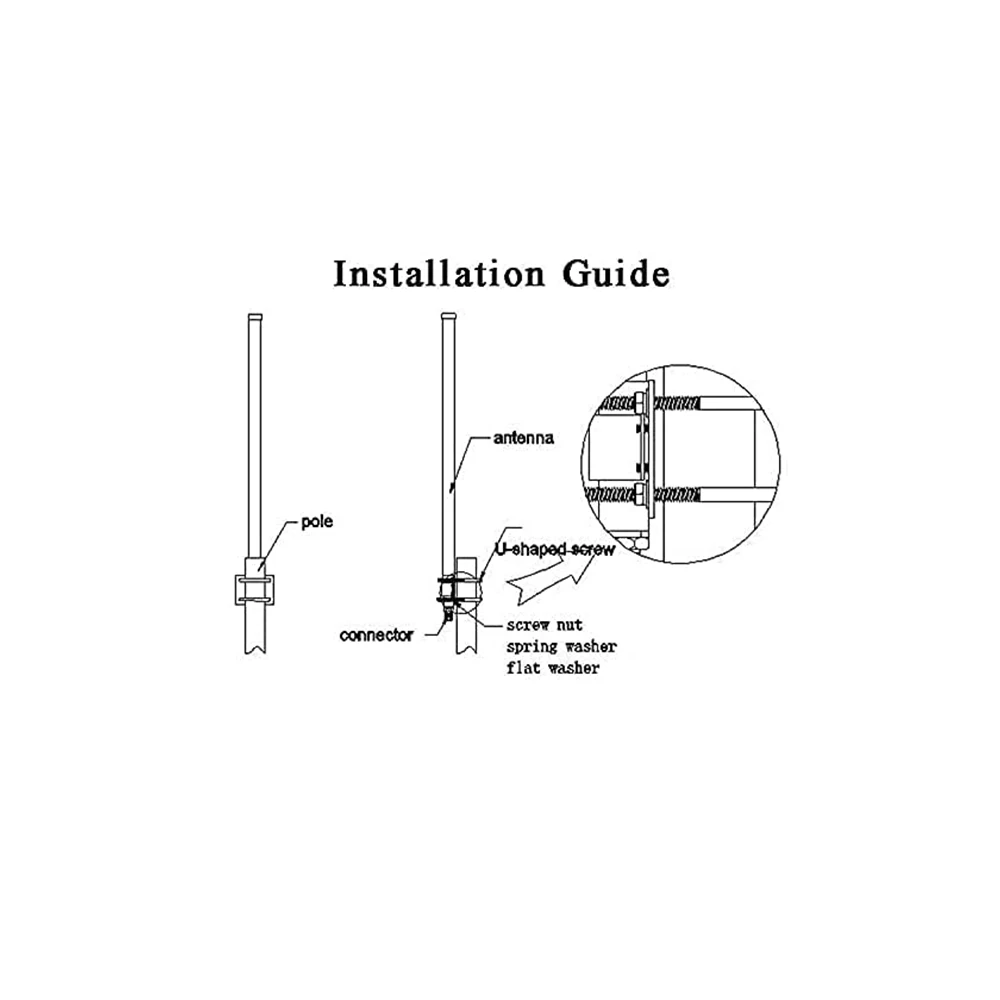

Fixing Method: 35cm/45cm/55cm 2pcs stainless mounts will be provided for each antenna.
80CM/100CM/115CM each antenna is equipped with a clip code
Compatiable devices with EU868 version: Bobcat 300, RAK, SenseCAP M1, Nebra, Syncrobit SP, Linxdot, Clodpi Pro, LongAP and other LoRa, LoRawan

Need cable click the link below:

//www..com/item/1005005084188896.html?spm=5261.15091090.table_row6_column0_item8.1.66c24edfP0nV1b

Weight 15 lbs
Dimensions 15 in
Brand Name

GIZONT
High-concerned chemical

None
Gain(dB)

5.8~14DBi
Origin

Mainland China
Model Number

GT-BLG20-868
Choice

yes
semi_Choice

yes

7 reviews for 868MHz Fiberglass Antenna Outdoor OMNI Antenna 868 MHz Helium Bobcat Miner Hotspot Antennas for Meshtastic Lorawan Long Range N

  1. R***s –

    Works exactly as advertised and arrived quickly! Would definitely buy again

  2. G***s –

    Item received, all good.

  3. m***r –

    Perfect this 45cm antenna in 868Mhz with a very low SWR1.1.

  4. U***r –

    Well tuned for 868 mhz. Seems to work well.

  5. Customer –

    Everything is fine, just need to test.

  6. Customer –

    45cm 868MHz version: VSWR=1.065.Perfect!

  7. M***n –

    Good antenna. But with this brand I always have good experiences. SWR 1.3.
