Creality Ender 5 MAX 3D Printer 700 mm/s Uitra Fast Print Speed 36-point Fully Automatic Bed Leveling Big Size 400x400x400mm

Printing Technology : Fused Deposition Modeling

Build Volume : 400x400x400 mm

Printer Dimensions : 649 x721 x850 mm

Package Dimensions : 732×679 x410 mm

Printer Net Weight : ≤ 25.9 kg

Gross Weight : ≤ 31.9 kg

Printing Speed : ≤ 700 mm/s

Acceleration : ≤ 20000 mm/s’

Printing Accuracy : 100±0.1 mm

Layer Height : 0.05-0.3 mm

Extruder : Direct drive extruder

Filament Diameter : 1.75 mm

Nozzle Diameter : 0.4 mm(compatible 0.6/0.8 mm nozzle)

Nozzle Temperature : ≤ 300 ℃℃

Heatbed Temperature : ≤100 ℃

Build Plate : Epoxy flexible build plate

Leveling Mode : 36-point Auto Leveling

Indicator Light : Red/Green/Yellow

File Transfer : USB drive/Wi-Fi

Display Screen : 4.3″ color touch screen

Camera : Optional

Power Loss Recovery : Yes

Filament Runout Sensor : Yes

Input Shaping : Yes

Lighting kit : Yes

Sleep Mode : Yes

Rated Voltage :100-240V~AC 50/60 Hz

Rated Power:1250W

Operating Temperature:5℃~40 ℃

Supported Filaments : Hyper PLAVPLA/PETG/TPU95A/ABS/ASAPLA-CF/PAPLA-Silk

Printable File Format : G-Code

Slicing Software : Creality Print 5.1

File Formats for Slicing : STL, OBJ, 3MF

App for Cloud Printing : Creality Cloud

Ul Languages : English, Spanish, German, French, Russian, Portuguese, ltalian, Turkish, Japanese, Korean, Chinese

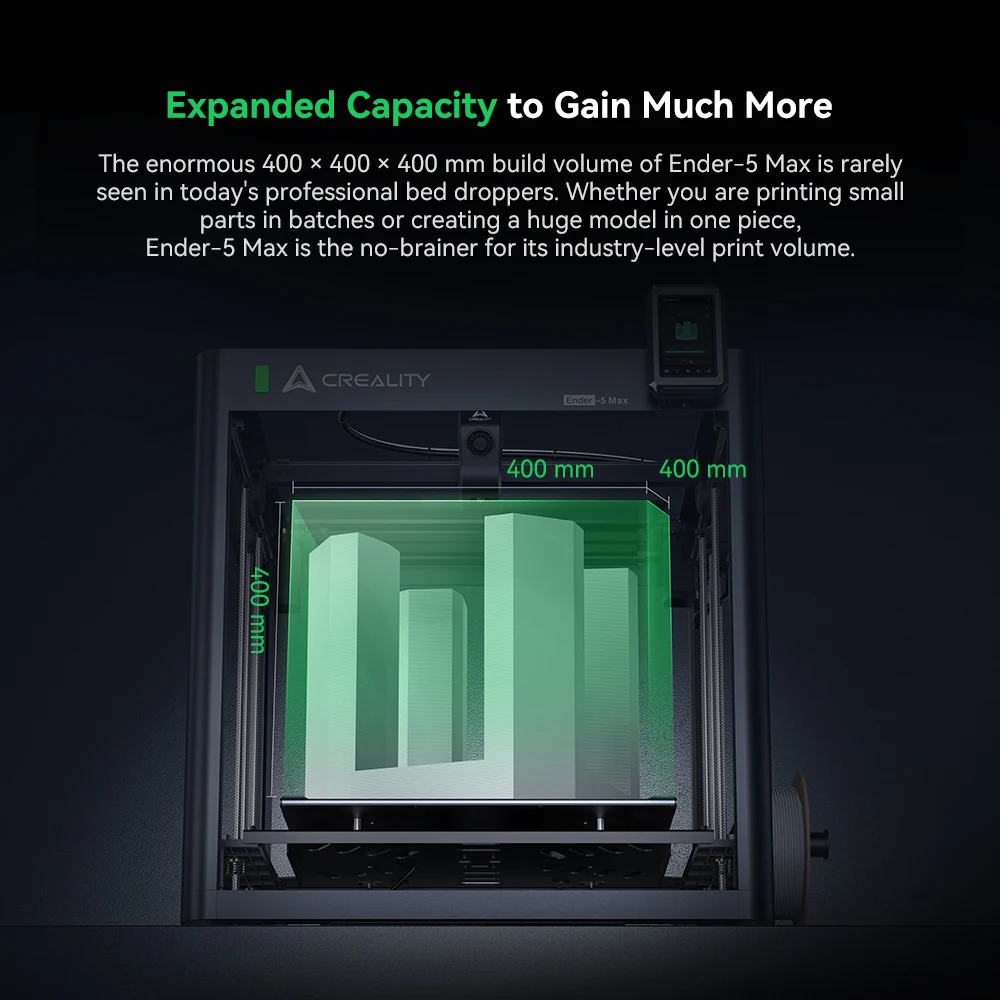

Expanded Capacity for Pro Users

An enormous 400 x 400 x 400 mm build volume. More capacity to batch-print small parts or create a huge split-free model.

Lightening Fast for Time Efficiency

42-76 stepper motors drive the movement of the X/Y-axis with power. Up to 700 mm/s print speed and 20000 mm/s acceleration for time-saving 3D printing.

Reliable Extruder, Minimal Downtime

Tempered extruder gears, able to sustain 500 hours of continuous extruding .Trustworthy for 24/7 production without pause for inspection or maintenance.

Quick 36-point Auto Leveling

36-point fully automatic bed leveling .High-quality print will start from a neat first layer without your intervention.

Beefy Frame & Precise Linear Rail

A thick frame with die-cast aluminum alloy parts steadies the printing process. A precise linear rail is also adopted for the X-axis to boost the print accuracy.

Managing a Print Farm over WLAN

The brand-new Creality Print slicer includes 40+ filament presets .It also allows you to manage printers concentratedly for production efficiency.

Additional Features for Productivity

Tri-color printer status indicator;1000W heatbed, reaching 80 ‘c in only 200 s ;New epoxy build plate, able to cope with PLA at only 38 °C

Official Optional Accessories

Premium enclosure for high-temp printing ;Webcam for monitoring and time-lapse photography Hyper PLA Filaments for better print results.
