Digital to Analog Audio Converter Optical/Coaxial Input Output Spdif TOSLINK to Stereo L/R & 3.5mm Jack with Volume Adjustable

Features:

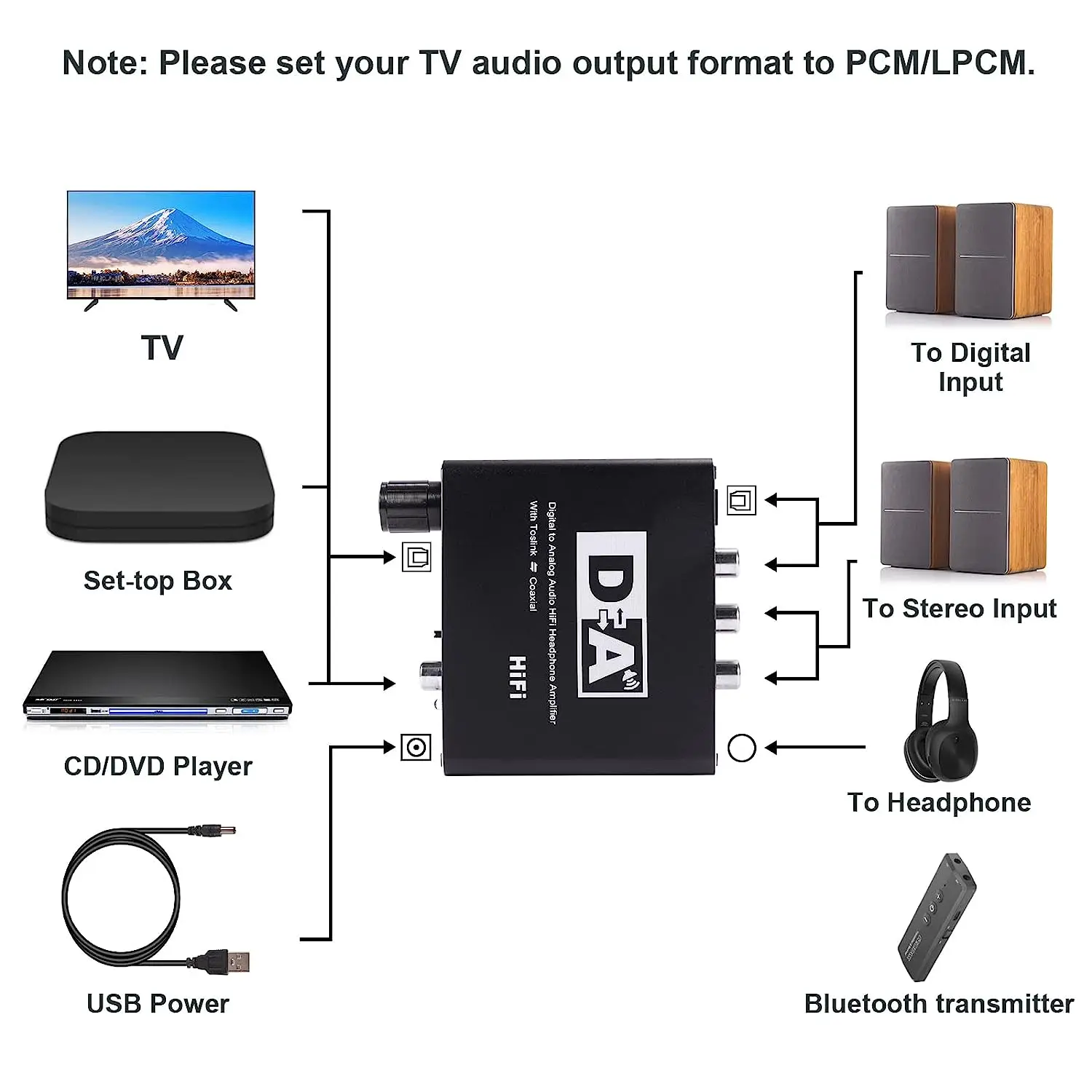

1. Digital Analog Converter: This DAC Converter Converts Coaxial or Toslink Digital Audio Signals to Analog L/R Audio and Can Be Connected to External Devices Such as Amplifiers via a Standard RCA-Type Jack, You Can Also Choose 3.5mm Headphone Jack Output, Connect High-Fidelity Headphones, It’s Ideal for Home or Professional Audio Switching.
2. Bidirectional Switch: Bidirectional Switch Design Makes It More Than a DAC Converter, Not only Supports Digital to Analog, Also Supports Digital to Digital (Support Toslink to Coaxial and Coaxial to Toslink) PLEASE NOTE: This Converter Supports Digital to Analog BUT NOT Support Analog to Digital.

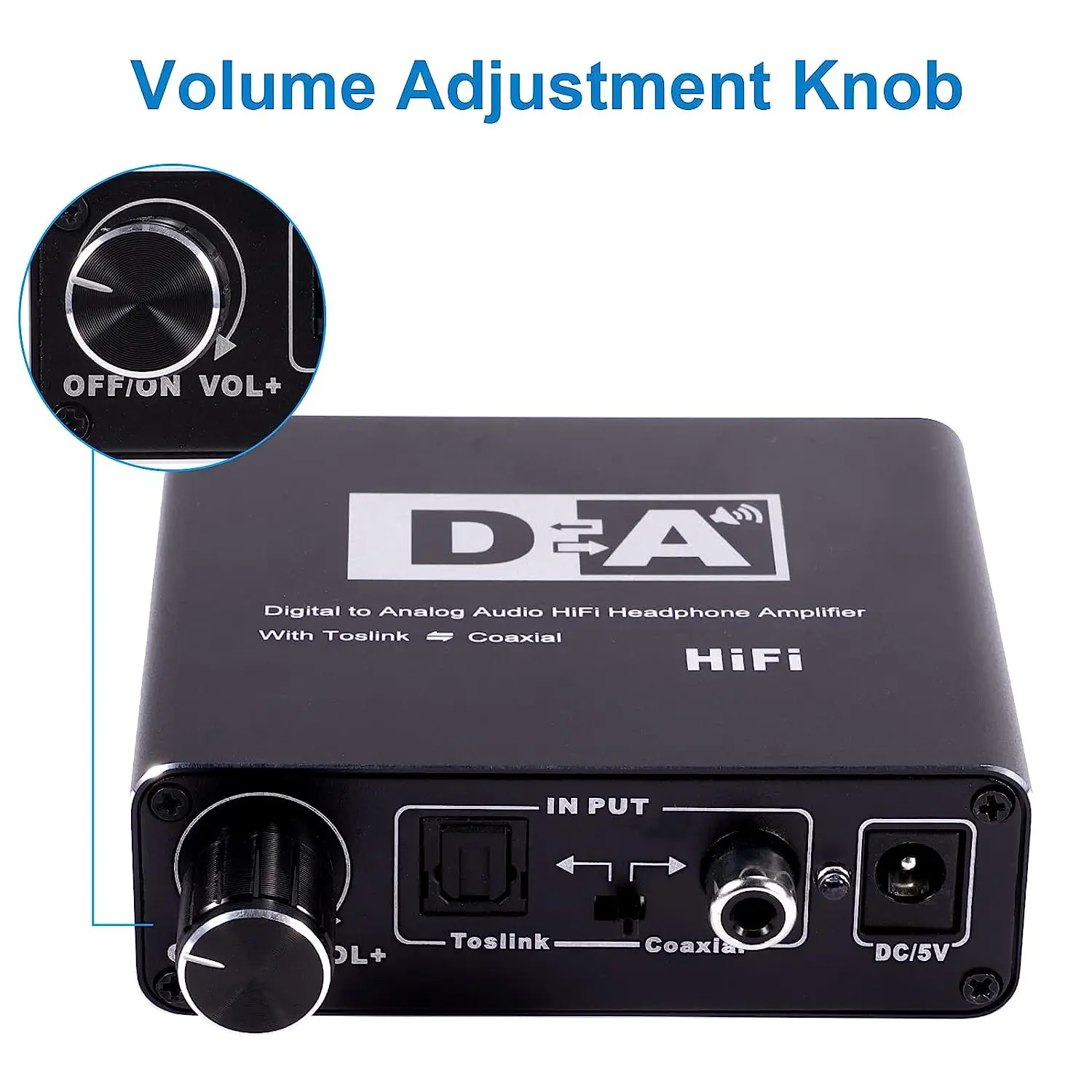

3. Supports Volume Adjustment: Built-in High-fidelity Amplifier Chips, L/R and 3.5mm Output Can Drive 16~150ohm Impedance Headphone/Sound. Supports Volume Control, Volume Control Knob Just for Adjusting the Volume of the Headphone Interface and RCA Interface, Not for Coaxial or Toslink.
4. Plug and Play: Comes with Optical Cable, Coaxial Cable and Power Adapter, No Need to Install Extra Programs, Just Plug and Play(Note: This Converter Doesn’t Support 5.1 Channel Such as Dolby and DTS; Please Set the Audio Output to PCM or LPCM Before Using; PS4 Pro and PS4 Slim Can’t Use This Converter).

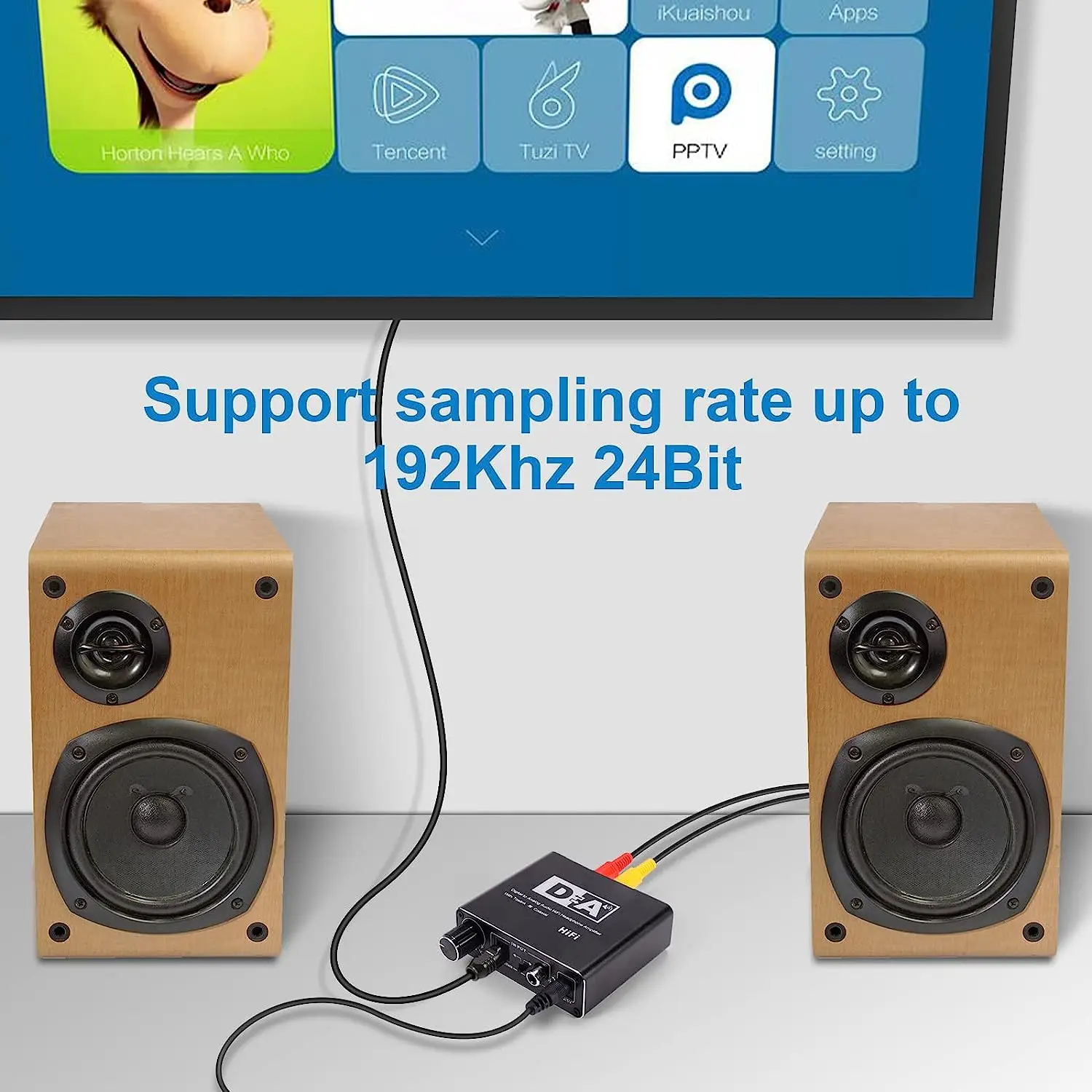

5. 192KHz Sampling Rate Achieved: With Volume Knob, You Can Adjust the Volume of RCA L/R + 3.5mm Jack Audio Output, Convenient to Use (Note: CANNOT Control the Toslink or Coaxial Audio Output). It Actually Supports Sampling Rate at 32, 44.1, 48, 96 and 192 KHz, and 24-Bit S/PDIF Incoming Bit Stream on Left and Right Channels.

Specification:
Type: Audio Adapter/Converter
Material: Aluminum
Input interface: Toslink, Coaxial
Output interface: R/L RCA, Toslink, Coaxial, 3.5mm

Signal Sampling Rate: 32-192 KHz
Bit Rate: 16-24 Bit
Output Impedance: 16-300 ohm
Working Voltage: 5V

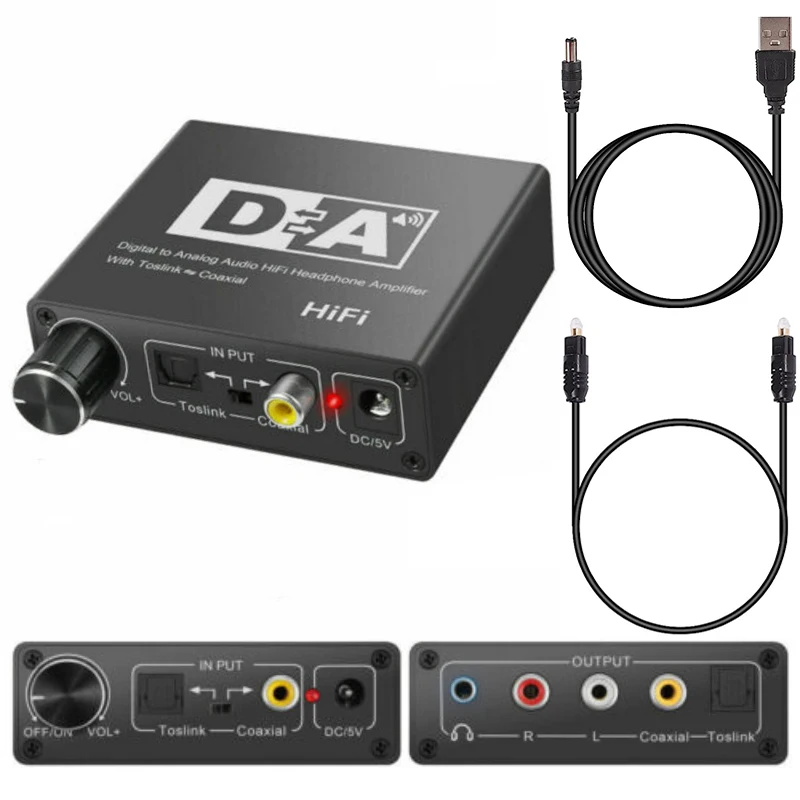

Package List:
1 x Digital to Analog R/L Audio Converter
1 x DC USB Power Cable
1 x Toslink cable
1 x User manual

Notes:
1. There is a power switch on the volume knob, please turn on the power switch before using the DAC.

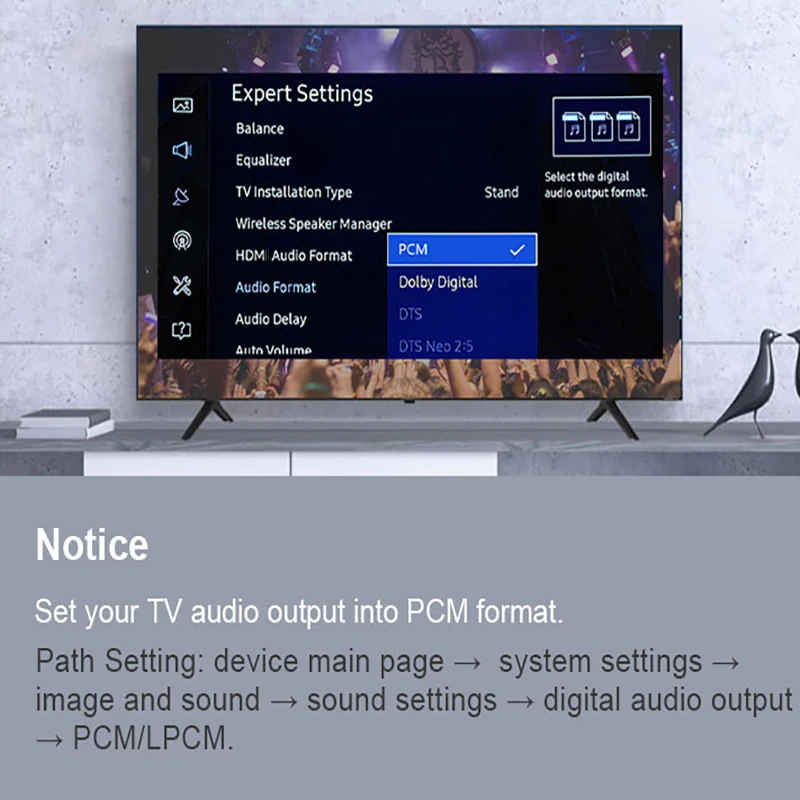

2. Please set the Audio Output to the PCM/LPCM Format.
3. For Samsung TV, if there is no sound even you set the audio output to the PCM/LPCM format, please turn ON the TV external speakers (Menus-Sounds- Speaker Setup- HESB/external speaker-ON)
4. This converter doesn’t Support 5.1 Channel Such As Dolby and DTS.
5. PS4 Pro and PS4 Slim CANNOT use this converter as they haven’t Optical fiber output interface.
