KuWFi 5.8G 900Mbps CPE Bridge Outdoor Waterproof Wireless WiFi Bridge AP Repeater Router PTP Up to 1-2KM with WAN LAN 24V POE

Please Notice:

1-2KM distance ,it mean point to point (we test it)The transmission distance is affected by many factors, such as local network conditions, buildings, trees, etc.，maybe it cannot reach 1-2KM,but please understand.

Please open this link to check how to use it ,thanks!
web://youtu.be/g0gVvON92Q0

FAQ：

Q1: How to pair Bridges?

A1: If you need to expand the wifi signal, you must first pair the two Bridges and then secure them to the designated place.Set one of the Bridges as the Master Bridge and move the switch on the bridge to the “H” end.The other Bridge is set as the Slave Bridge, and the switch on the bridge is moved to the “C” end.
Then you need to press the “RST” button of both Bridges at the same time for one second, and the Bridges will automatically pair.

Q2: i can not log in web ui page for the bridge?

A2: If you need to manage the bridge, you can use a computer wired connect or smartphone wifi connect to the bridge.Then set a static IP address for the network to access the WEB UI page.
You can set static ip address type 192.168.188.10 and Subnet mask type 255.255.255.0.
And then you can log in web ui page 192.168.188.253 in browser.
After setting is complete, the IP address must be restored to its initial setting. Otherwise your device cannot access the Internet.

Q3: Outdoor wi-fi bridge is less than described distance?

A3: The transmission distance is affected by many factors, such as local network conditions, buildings, trees, etc.，maybe it cannot reach described distance.When installing the bridge, please avoid walls or other obstacles as much as possible.

Q4: The bridge Wi-Fi signal is weak or the transmission distance is short?

A4: Adjusting the wifi protocol and bandwidth of the bridge will give you different network speeds and different transmission distances. You need to continuously debug to the best state for different environments and requirements.

Q5: Does the bridge support 360-degree signal transmission?

A5:The bridge uses panel antennas, so it does not support 360-degree transmission. It is recommended that when installing, the two Bridges are face to face, which can improve the stability of Wi-fi signal transmission.

Q6: Can’t find a Wi-Fi signal?

A6: Since each country supports different Wifi channels, I suggest you log into the WEB UI page to change the region of Wifi signal or use another channel.

Q7: Outdoor wi-fi bridge is not powered

A7: Please connect product’s WAN or POE port with adapter’s POE port.If connect correctly ,still not power ,please change the adapter and rj45 lan cable to try.

Product Description

1.This cpe router produce 5.8G900Mbps, Long Range WiFi Extender Outdoor Wireless Bridge CPE with LED display to configure the PT/PTMP connection
2.Build in 12dBi MIMO panel antenna(embedded) ,High Gain Antenna for More Range
3.CPE200 with ABS waterproof, dustproof and sunscreen shell, temperature adaptive also; Meantime, it support 24V passive PoE, ESD protection and surge protection, ideal for outdoor use
4.Waterproof/dust proof/lighting protection; Operating Temperature: -30℃-55℃ Storage Temp: -40℃-70℃
5.Multi-Mode
– Support Wireless AP, Repeater operation mode
– Support SSID broadcasting, Multi SSID up to 4
– Support DHCP serverNetwork Security
6.Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security
7.Users Max: 64, Recommand: 30
8.Transmit power: 19±2dBm

Detail

Operation Mode:Wireless AP, Wireless repeater
Interface:
1*10/100Mbps WAN Port,
1*10/100Mbps LAN Port（By connecting to a wireless network, the Wifi speed can reach 900 Mbps; if you connect to a wired network through a LAN port, the network speed will be below 100 Mbps）
1 * Switch to operate the operation mode (Right is AP mode, Left is Repeater mode)
1 * Reset button
FLASH * DDR2: FLASH 8MB * DDR2 64MB
Waterproof Level:IP65
Wireless security: OPEN、WPA、WPA2、WPA-PSK、WPA2-PSK

Packing list:

2pcs CPE Bridge
2pcs POE Power Adapter (24V0.5A)
1pcs Quick Start Guide
2pcs Ethernet Cable (1meter)

Tips: If the two devices do not communicate, please press “reset” at the same time to reset them, Note: Manual pairing=press ‘reset’ at the same time for 1 second

Finally, they will communicate with each other and pass your WiFi from H to C.

Tips:WAN connects to PoE, LAN connects to other devices

Product

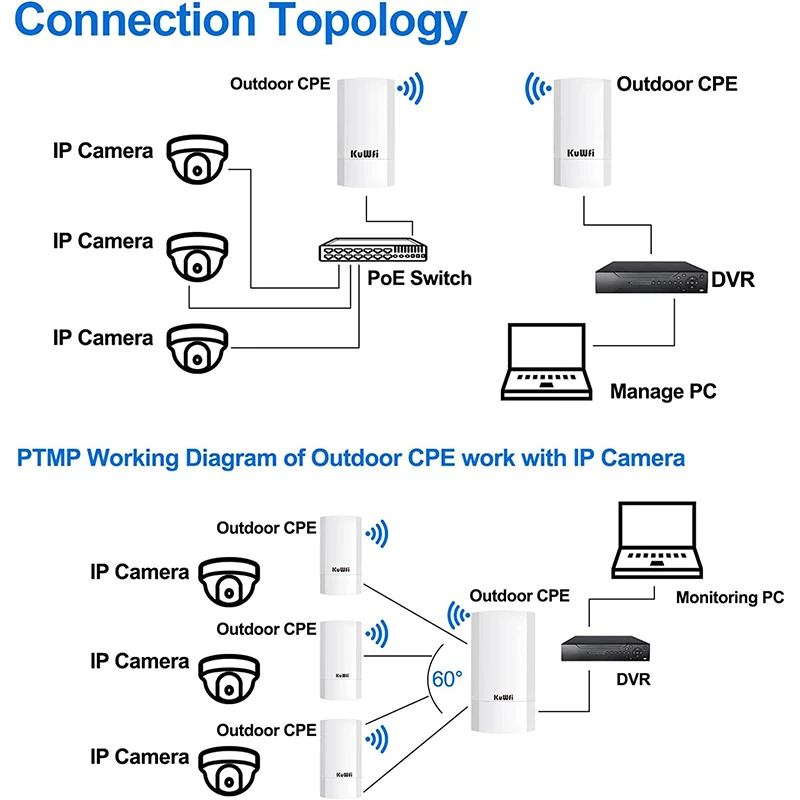

CPE200 wireless bridge is a 5.8G high-performance, high-speed outdoor long-distance wireless network bridge. It has the characteristics of long transmission distance, strong penetrating ability, and strong anti-interference ability. It supports intelligent channel analysis and automatic optimal channel selection. Realize point-to-point and point-to-multipoint outdoor coverage and applications. Very suitable for Internet expansion and monitoring range expansion of garages, barns, shops, docks, etc

This wifi outdoor bridge built-in 12dBi directional antenna can significantly improve the transmission and reception performance of wireless signals,data rate max up to 900Mbps between the bridge,which supports 1-2KM long-distance wireless transmission.suitable for warehouses, garden,barns, shops, or garages next to your house.

Multi-Mode wireless wifi bridge with ethernet port and LED display: Support Wireless AP, Repeater operation mode; Support SSID broadcasting, Multi SSID up to 4; Support DHCP server. It transmits via wireless WiFi, reducing the trouble of wiring cable.

Switch”C”to repeater mode

Support AP/Repeater Operation Mode；Suit for various Wi-FI transmission schemes

5.8G frequency using a new generation of 11ac technology is better than 2.4 G traditional CPE. It makes long-range WiFi bridge has better anti-interference performance, good compatibility, and strong anti-adjacent channel interference. Wireless bridge IP65 dustproof and waterproof, lightning protection,and antifreeze,is very suitable for outdoor use.

Full information LED display, include host-client mode(H or C,the number behind is the channel number), signal strength(P,a number will be displayed after the pairing is successful), IP address(A), port /wifi/power led, the F button can switch the LED display info, the S button can complete the setting, more clearly know the device status, more conducive to debugging and maintenance.
