New NanoVNA-H Vector Network Antenna Analyzer 2.8" Display 10KHz-1.5GHz MF HF VHF UHF SWR With SD Card Slot Digital Nano Tester
New NanoVNA-H Vector Network Antenna Analyzer 2.8" Display 10KHz-1.5GHz MF HF VHF UHF SWR With SD Card Slot Digital Nano Tester - Image 2
New NanoVNA-H Vector Network Antenna Analyzer 2.8" Display 10KHz-1.5GHz MF HF VHF UHF SWR With SD Card Slot Digital Nano Tester - Image 3
New NanoVNA-H Vector Network Antenna Analyzer 2.8" Display 10KHz-1.5GHz MF HF VHF UHF SWR With SD Card Slot Digital Nano Tester - Image 4
New NanoVNA-H Vector Network Antenna Analyzer 2.8" Display 10KHz-1.5GHz MF HF VHF UHF SWR With SD Card Slot Digital Nano Tester - Image 5
New NanoVNA-H Vector Network Antenna Analyzer 2.8" Display 10KHz-1.5GHz MF HF VHF UHF SWR With SD Card Slot Digital Nano Tester - Image 6

New NanoVNA-H Vector Network Antenna Analyzer 2.8″ Display 10KHz-1.5GHz MF HF VHF UHF SWR With SD Card Slot Digital Nano Tester

(20 customer reviews)

Original price was: $177.99.Current price is: $78.99.

Fast FREE Shipping On All Orders!

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • Visa Card
  • Apple Pay
  • Visa Card

NanoVNA-H Option

Features:

1. With the addition of the ABS casing and the new packaging, Compared to many customers using 3D printed housing, it saves costs.

2. Support typec-typec line, more convenient to connect to mobile phones ,Support to most Android phones with the same screen display(Doesn’t support for iPhone). Solve the problem of small screen, insufficient brightness and so on.

3.Support time domain analysis function (TDR)

4.The battery usage can be displayed on the interface.

5.The product serial number is attached to the back

6.Changed the outer packaging, the world cover hot stamping carton, plastic inner protection. Reduce problems caused by transportation shocks and other processes.

7.Other details have been improved.



Specification:

– PCB: 54mm x 85.5mm x 11mm (without the size of connectors, switches)

– Measurement Frequency:10KHz -1.5GHz

– RF Output: -13dbm (maximum -9dbm)

– Frequency Accuracy: ＜0.5ppm

– Measurement Range: 70dB (50kHz-300MHz), 50dB (300M-600MHz), 40dB (600M-900MHz) enable extended firmware)

– Port SWR: < 1.1

– Display: 2.8 inch TFT (320 x240)

– USB Interface: USB Type-C;

– Communications Mode: CDC (Serial)

– Power Supply: USB 5V 120mA, built-in 650mAh electricity, maximum charging current 0.8A

– Number of Calibration Points: 101 (Fixed)

– Number of Scanning Points: 101 (Fixed)

– Display Tracking: 4, Marking: 4, Save Setting : 5

– Measuring S parameters, voltage standing wave ratio, phase, delay, Smith chart and the like



Package List:

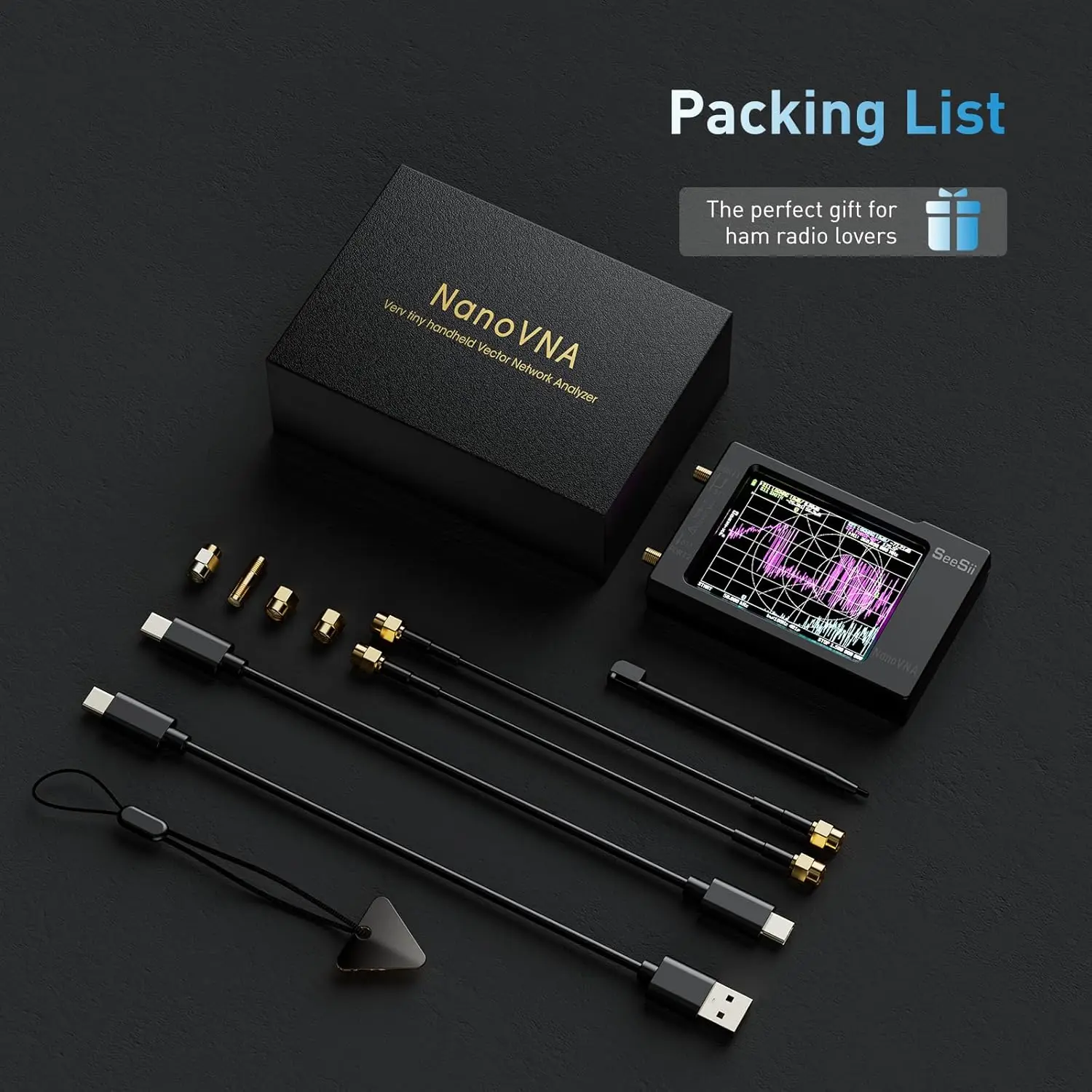

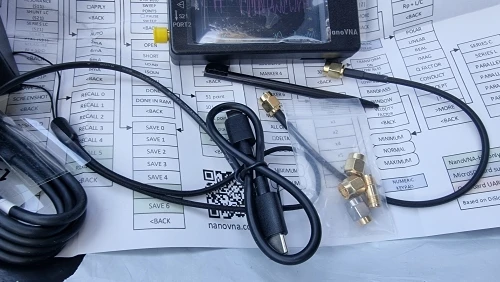

1X NanoVNA Host (2.8-inch touch screen and 650mAh battery are included)

2X 20cm SMA Male to Male RG174 RF Cable

2X SMA Female to Female Connector

1X SMA Simple Calibration Kit SHORT

1X SMA Simple Calibration kit OPEN

1X SMA Simple Calibration kit LOAD

1X USB Type-C Data Cable

1X Type-c to Type-c Line

1X Touch Paddle





NanoVNA-H4 Option

Features:

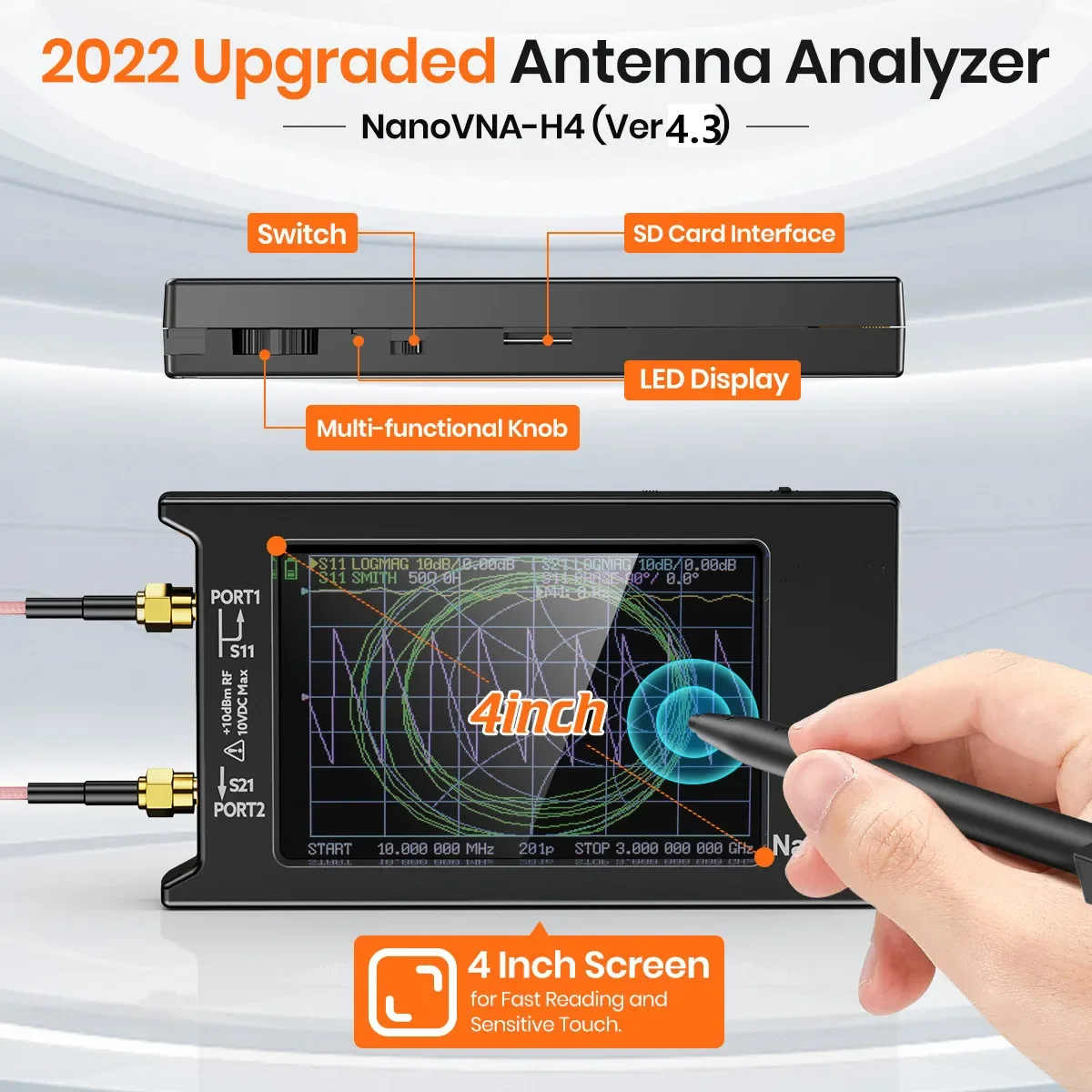

This Nano VNA is a DIY product that provides perfect vector network measurement capabilities, tiny and handheld, stand-alone with 4-inch LCD display, portable with 1950mAh battery powered or USB powered.
The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 1.5GHz. The 50K-300MHz frequency range of the si5351 direct output provides better than 70dB dynamic, The extended 300M-900MHz band provides better than 60dB of dynamics, and the 900M-1.5GHz band is better than 40dB of dynamics.
The default firmware main function is used for antenna performance measurement. The TX/RX method can measure the complete S11 and S21 parameters. If you need to obtain S12 and S22, you need to manually replace the transceiver port wiring
Using PC software NanoVNASaver, it can connect to a NanoVNA and extracts the data for display on a computer, and for saving to Touchstone files. We can export Touchstone (snp) files for various radio design and simulation software through PC software
The metal shield is designed to reduce the external interference and improve the measurement accuracy.

Sprcifiactions:
ABS case: 75mm x 133mm x 18mm (excluding protrusions)
Measurement frequency: 10KHz -1.5GHz
HW version：4.3
RF output: 0dbm (±2dbm)
Measurement range: 70dB (50kHz-300MHz), 60dB (300M-900MHz), 40dB(0.9G-1.5GHz));
There may be errors caused by nonlinear transformation of fundamental wave when using harmonic measurement.
Port SWR: < 1.1
Display: 3.95 inch TFT (320 x 480)
USB interface: USB type-C communication mode: CDC (serial)
Power: USB 5V 200mA, built-in 1950mAh battery, maximum charging current 1A
Number of scanning points: 101 (fixed)
Display Tracking: 4, Marking: 4, Setting Save: 5
Frequency Tolerance:<2.5ppm
Frequency Stability:<0.5ppm

Package List:
1X NanoVNA-H4 (with 1950mAh battery)
1X USB Type-C data cable
1X Type-C To Type-C cable
2X 15cm SMA male to male RG316 RF cable
1X SMA male calibration kit – OPEN
1X SMA male calibration kit – SHORT
1X SMA male calibration kit – LOAD


Weight 15 lbs
Dimensions 6 in
Brand Name

SeeSii
Origin

Mainland China
Battery Included

Yes
High-concerned chemical

None
Certification

CE
Measurement Bandwidth

PCB 54mm x 85.5mm x 11mm
Frequency Range

10KHz -1.5GHz
Feature 1

spectrum analyzer
Feature 2

nanovna
Feature 3

analizador de espectro
Feature 4

analizzatore di spettro
Feature 5

rf spectrum analyzer
Feature 6

antenna analyser
Feature 7

sdr malachite
Feature 8

swr meter for antenna
Feature 9

swr meter
Choice

yes
semi_Choice

yes
